Compressed air piping system design, supply & installation across Canada.
ACH Solutions is an authorized Atlas Copco partner delivering complete compressed air piping system solutions — oil-free and scroll compressors, AIRnet aluminum distribution, and full point-of-use installation. Built to ISO 8573-1 air quality standards for pharma, manufacturing, automotive, and food production facilities.
A complete compressed air piping system, not just a compressor.
Most facilities buy a compressor. Then, they inherit a piping problem.
In most facilities, old steel pipe corrodes from the inside. Meanwhile, leaks waste 20–30% of your compressed air output. As a result, pressure drops force the compressor to work harder than it should. Consequently, energy bills climb, equipment wears faster, and product quality drifts.
However, we approach it differently. Specifically, every compressed air piping system we deliver starts with what your process actually needs — air quality class, demand profile, peak load, point-of-use distribution, and future expansion capacity.
Then, we engineer the entire system as one solution.
From there, ACH Solutions designs the complete system: oil-free or scroll compressor, refrigerated or desiccant dryer, multi-stage filtration, properly sized receiver tank, condensate management, and AIRnet aluminum distribution to every drop. Furthermore, this discipline came from years of building turnkey cleanroom solutions for regulated industries — environments where the building infrastructure is part of the product, and where failure is not an option.
Finally, one team owns the outcome.
Unlike traditional installations, we don't hand off between trades. Instead, ACH Solutions performs the engineering, supply, installation, and commissioning under one accountable scope — similar to how we deliver project management services for cleanroom and modular construction projects.

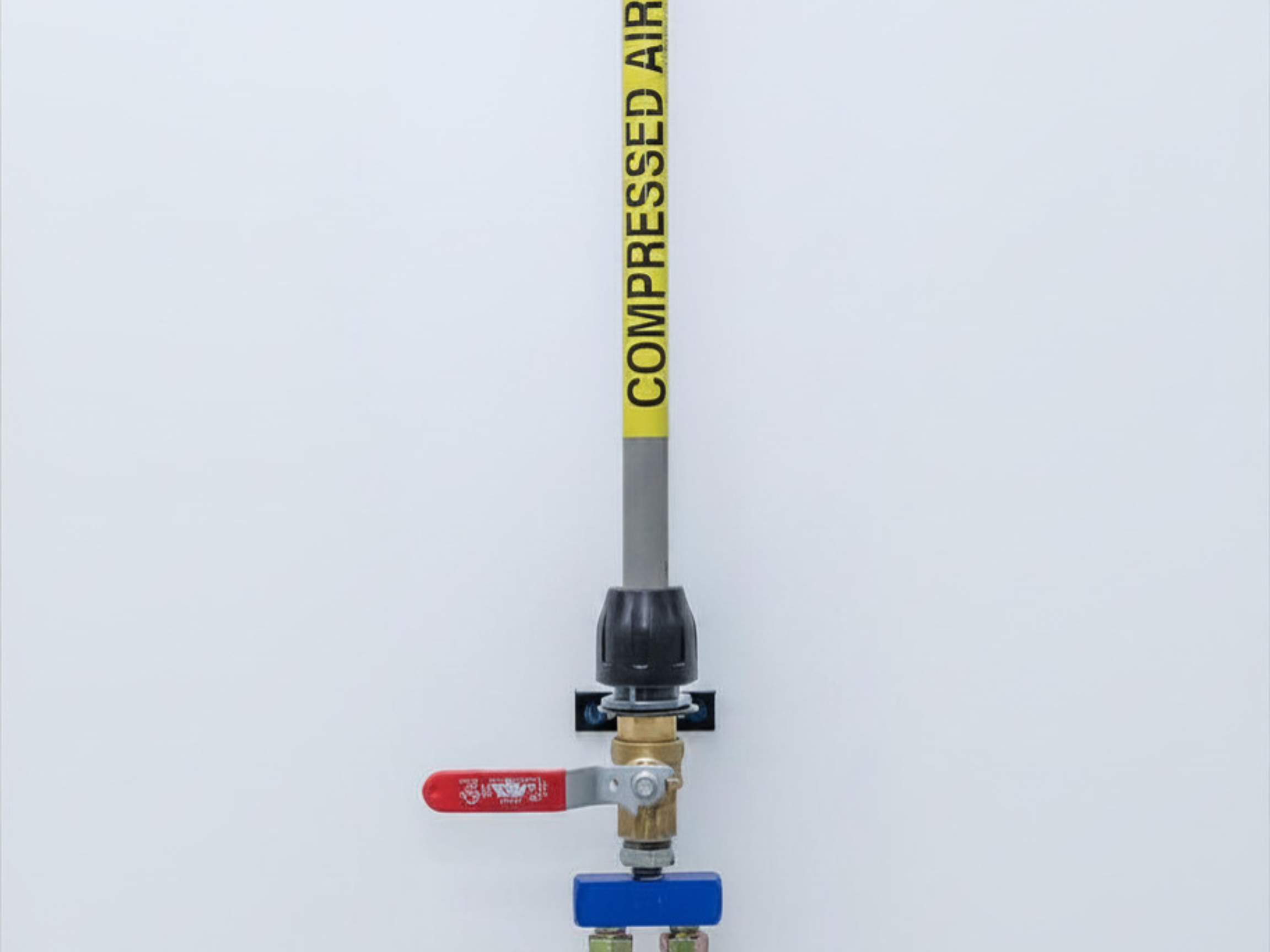

AIRnet aluminum drop with code-compliant pipe marking — installed by ACH Solutions
Atlas Copco Authorized
We supply and install Atlas Copco oil-free and scroll compressors with full warranty, factory parts, and 24/7 service.
AIRnet Aluminum Distribution
Anodized aluminum piping with push-fit fittings — corrosion-resistant, modular, 70% faster install vs steel.
ISO 8573-1 Compliant
Every system is designed to your required ISO 8573-1 air quality class — Class 0 capable for pharma and food.
Single Accountable Team
Engineering, supply, installation, and commissioning under one team — no GC markup, no sub-trade gaps.
Three hidden costs of a poor compressed air piping system.
Indeed, above all, compressed air is the most expensive utility in most facilities. In fact, electricity to run the compressor often costs more than the compressor itself within two years of operation. As a result, every leak, every pressure drop, and every contamination event compounds.
Two compressor technologies, matched to your process.
Atlas Copco — the standard for industrial compressed air.
As an authorized Atlas Copco partner, ACH Solutions specializes in two compressor technologies that cover the vast majority of regulated and demanding industrial applications: oil-free rotary screw and scroll. Naturally, the right choice depends on your air quality requirement, demand profile, and operating environment. In short, every facility's needs map cleanly to one of these two technologies.
Oil-free rotary screw compressors.
First, Atlas Copco oil-free rotary screw compressors deliver ISO 8573-1 Class 0 oil-free compressed air — zero risk of oil contamination in the air stream. Consequently, this is the standard for pharmaceutical, food, beverage, and electronics manufacturing. Moreover, variable speed drive options dramatically reduce energy consumption.
- ISO 8573-1 Class 0 oil-free certified
- Pharmaceutical, food, beverage, electronics
- Continuous duty, high demand
- Variable speed drive (VSD) for energy savings
- Integrated dryer options (full-feature models)
Scroll compressors.
Meanwhile, Atlas Copco scroll compressors provide clean, quiet, energy-efficient compressed air for laboratories, dental offices, smaller manufacturing operations, and applications where noise and footprint matter.
- Inherently oil-free design
- Laboratory, dental, light manufacturing
- Quiet operation — suitable for occupied spaces
- Compact footprint
- Multiple units for redundancy and turndown
A compressor is not a compressed air piping system.
Why integration matters more than equipment.
In reality, a compressor by itself produces hot, wet, dirty air. Without proper treatment and distribution, that air will damage equipment, contaminate product, and waste energy. Therefore, ACH Solutions delivers the complete compressed air piping system — every component sized, integrated, and commissioned together.
Every component sized to your demand profile.
Specifically, when you buy a compressor from us, you also get a system designed to perform. For example, the refrigerated or desiccant dryer is matched to your dew point requirement. Similarly, multi-stage filtration is sized for your air quality class. Additionally, the receiver tank is sized for your demand profile. Moreover, automatic condensate management handles the water that your dryer removes. Finally, AIRnet aluminum piping is engineered for minimum pressure drop.
Atlas Copco G11 FF compressor with integrated dryer and AIRnet aluminum distribution — installed by ACH Solutions, Mississauga
Send us your floor plan and demand load. Then, we'll design the complete compressed air piping system at no cost.
Send floor planThe blue pipe — built for compressed air, not adapted to it.
Steel pipe was never designed for this job.
Historically, traditional compressed air piping was steel — threaded, welded, prone to internal corrosion, slow to install, and a constant source of leaks. In contrast, AIRnet from Atlas Copco is anodized aluminum, engineered specifically for compressed air piping system service.
AIRnet was engineered specifically for compressed air.
First, push-fit modular construction means no welding or threading. Additionally, the smooth interior bore reduces friction and pressure drop. Moreover, the color-coded blue exterior meets industry safety standards for compressed air pipe identification. Finally, fittings carry a 10-year Atlas Copco warranty.
ISO 8573-1 — the international standard for compressed air quality.
Why every facility needs to know its target class.
Above all, every compressed air piping system has a target air quality. Specifically, ISO 8573-1 is the global benchmark — three numbers expressing how clean your air must be for particles, water, and oil. Consequently, ACH Solutions designs each system to meet your required ISO class, with the right compressor, dryer, and filtration combination.
| Class | Application |
|---|---|
| Class 0 | Pharmaceutical, food, beverage — oil-free certified |
| Class 1 | Critical electronics, hospital instruments |
| Class 2 | General manufacturing with sensitive equipment |
| Class 3 | Standard pneumatic tools and machinery |
| Class 4 | General-purpose industrial air |
An ISO 8573-1 spec looks like "1.4.1"
First, the three numbers represent Particles . Water . Oil — each on its own scale from 0 (cleanest) to 9 (least restrictive).
For example, Class 1.4.1 means Class 1 particles, Class 4 water, Class 1 oil — typical for general food and beverage applications. However, for aseptic pharmaceutical fill, you would specify Class 1.2.1 or stricter.
Therefore, ACH Solutions helps you select the correct ISO class for your process, then designs the system to deliver it consistently.
Talk to an air quality engineer →Three common compressed air piping system scenarios.
First, although every facility is different, most compressed air piping system projects fall into one of three patterns. Subsequently, knowing which one you're in helps frame the budget and timeline conversation.
Greenfield install
Furthermore, you're building or fitting out a new facility. Consequently, you need a complete system designed from scratch — sized correctly the first time, with room to grow.
Steel-to-AIRnet retrofit
Meanwhile, your old steel pipe is leaking, corroded, and costing you 20–30% in lost air. Therefore, a phased AIRnet changeover replaces it without shutting down production.
ISO 8573-1 air quality upgrade
Additionally, your audit or new product line demands stricter air quality — perhaps Class 0 oil-free or tighter dew point. Hence, we add or replace the right compressor, dryer, and filtration stages.
Compressed air piping system delivery across regulated and industrial sectors.
Specifically, from oil-free Class 0 air for pharmaceutical fill lines to high-volume distribution for automotive assembly, ACH Solutions designs and installs compressed air piping system solutions for every major sector across Canada.
Need a quote on a complete compressed air piping system?
Tell us your air quality class, demand profile, and facility layout. Then, we'll send a real scope and budget — not a parts list.
A real compressed air piping system — side by side.
Specifically, although many contractors will sell you a compressor, few deliver a true compressed air piping system. Indeed, the difference shows up in air quality, energy bills, and downtime over the life of the system.
| ACH Solutions Compressed Air Piping System | Typical contractor installation | |
|---|---|---|
| Compressor brand | Atlas Copco — authorized partner, full warranty | Mixed brands, parallel-imported, warranty gaps |
| Air quality target | ISO 8573-1 class designed to your process | Generic specification, no class verification |
| Piping material | AIRnet anodized aluminum — corrosion-resistant | Black steel or threaded galvanized — rusts internally |
| System integration | Compressor + dryer + filter + receiver designed together | Components ordered separately, sized by rule of thumb |
| Installation speed | 70% faster — push-fit AIRnet fittings | Welded or threaded — slow, weather-dependent |
| Pressure drop | Designed and verified at commissioning | Often discovered after equipment underperforms |
| Future expansion | Add or relocate drops in hours, not days | Cut, rethread, reweld — and re-test |
| Single accountability | One team — design through commissioning | Multiple subs, finger-pointing on issues |
Compressed air piping system delivery — six disciplined phases.
Indeed, every ACH Solutions compressed air piping system follows the same disciplined process — from first conversation to commissioned handover. As a result, you get predictable timelines and no surprises.
Compressed air piping system — answers to what we hear most.
Other turnkey solutions across Canada and USA.
Furthermore, in addition to compressed air piping systems, ACH Solutions delivers a complete portfolio of controlled environment and modular construction solutions for regulated industries.
Modular Cleanrooms
Above all, turnkey ISO Class 1–9 cleanroom design, manufacturing, and installation across Canada.
View cleanroomsCold Rooms
Specifically, GMP pharmaceutical cold storage, walk-in freezers, and ultra-low temperature rooms.
View cold roomsBattery Dry Rooms
Additionally, ultra-low humidity environments for lithium battery manufacturing and moisture-sensitive electronics.
View dry roomsConstruction Management
Meanwhile, modular construction management for cleanrooms, cold rooms, and regulated facility builds.
View constructionProject Management
Furthermore, end-to-end project management services for turnkey controlled environment delivery.
View servicesAll Industries
Including pharma, biotech, semiconductor, automotive, aerospace, food, and more.
View industriesTexas Operations
Including cleanroom and modular construction services for Texas — Houston, Dallas, Austin, San Antonio.
View Texas pageWestern Canada
Additionally, our Calgary office serves Alberta, British Columbia, Saskatchewan, and Western Canada.
Visit Calgary officeStart your compressed air piping system project.
First, tell us your air quality class, your demand profile, and your facility layout. In return, we'll respond within one business day with an honest assessment and a clear next step.
