Modular Walls

Cleanroom Solutions to Meet Your Requirements

A vital component in the creation of modular cleanrooms are the wall panels which form an important part of our product offering. Our modular cleanroom walls are manufactured in standard sizes and can also be customized depending on the application requirement.

Modular wall panels are designed for ease in installation and a practical functionality, while maintaining a modular flexibility to interchange through ease of demount ability. Whether you are adding-on, modifying an existing facility, or constructing a new facility, our wall panel portfolio offers materials and designs suit your specific application.

Each panel made by ACH (A Cleanroom Hub) is completely sealed on all 4 sides, using extruded aluminum profiles, and insulated with high density materials to guarantee superior mechanical stability of the wall itself.

Some of the wall panel materials and designs that we can provide, and install are:

  • Galvanized Iron, Powder Coated
  • uPVC
  • High Pressure Laminated (HPL)

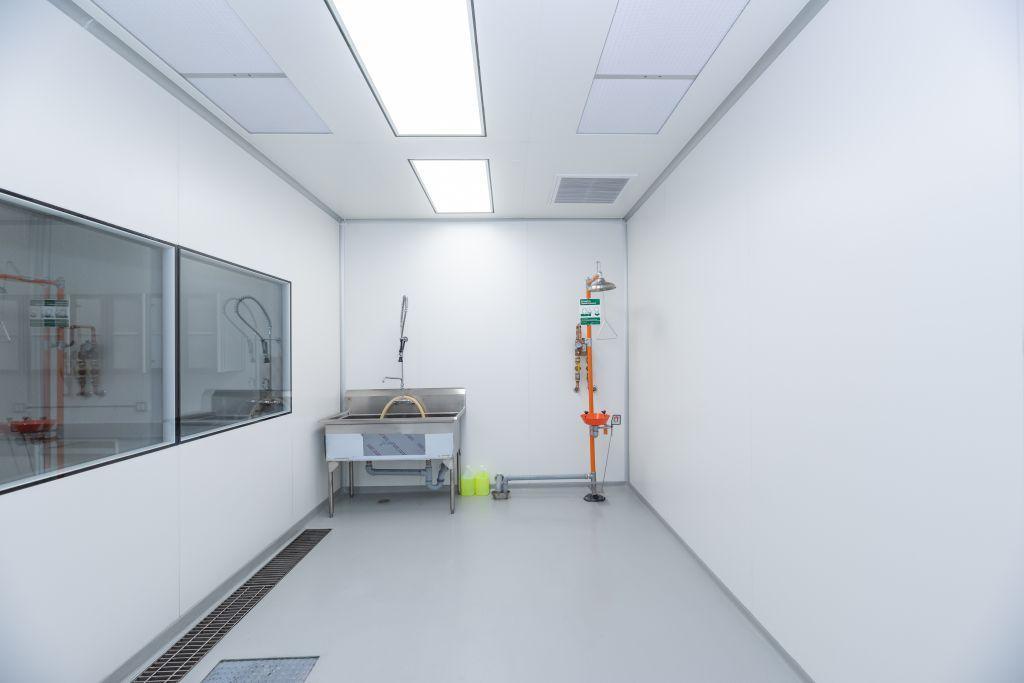

room with modular cleanroom walls

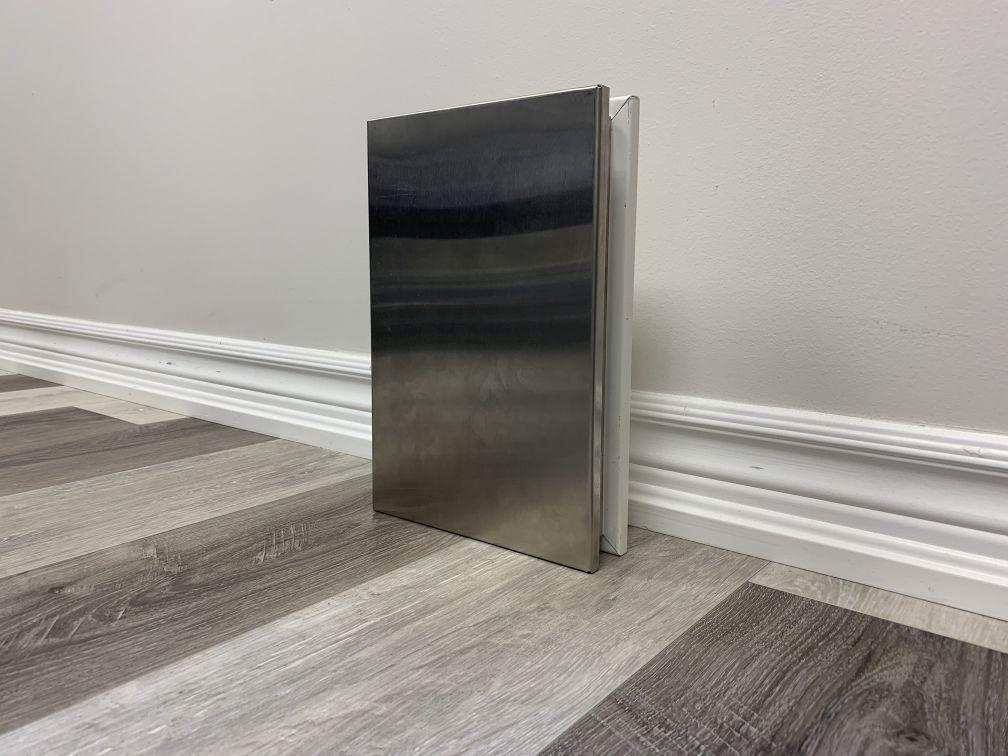

Skin of the Panels

The material plays a vital role in achieving a sustainable cleanroom environment. Pre-cutouts for various accessories like lights, filters, sockets, switches are available.

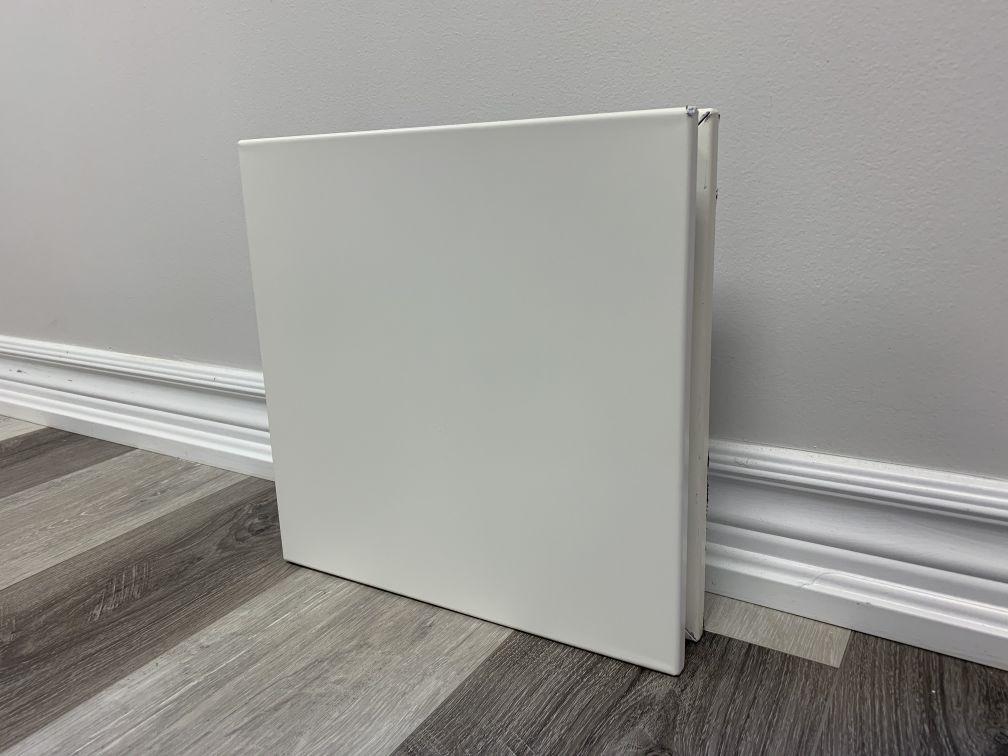

Powder Coated Galvanized Iron

Light weight​
Long life & re-usable​
Low resistance to scratches​
ISO /GMP/ FDA compliant


Light weight​
Long life & Re-usable​
Average Resistance to scratches​
ISO /GMP/ FDA compliant


Average weight​
Long life​
Impact resistance​
Ease of cleaning​
Scratch proof​
ISO /GMP/ FDA compliant

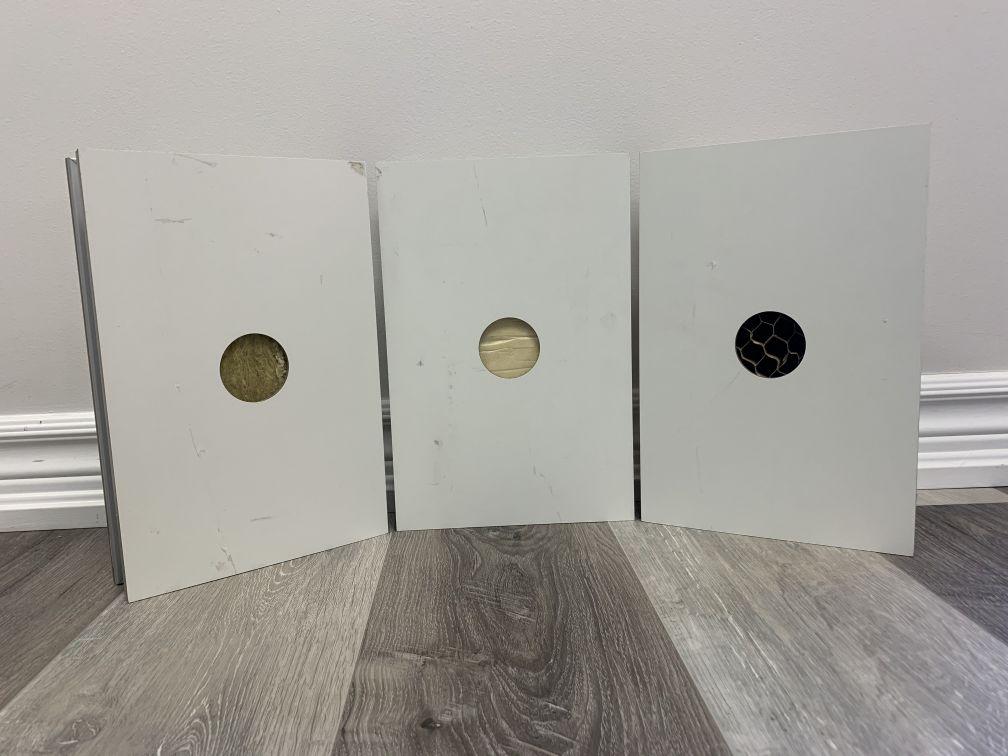

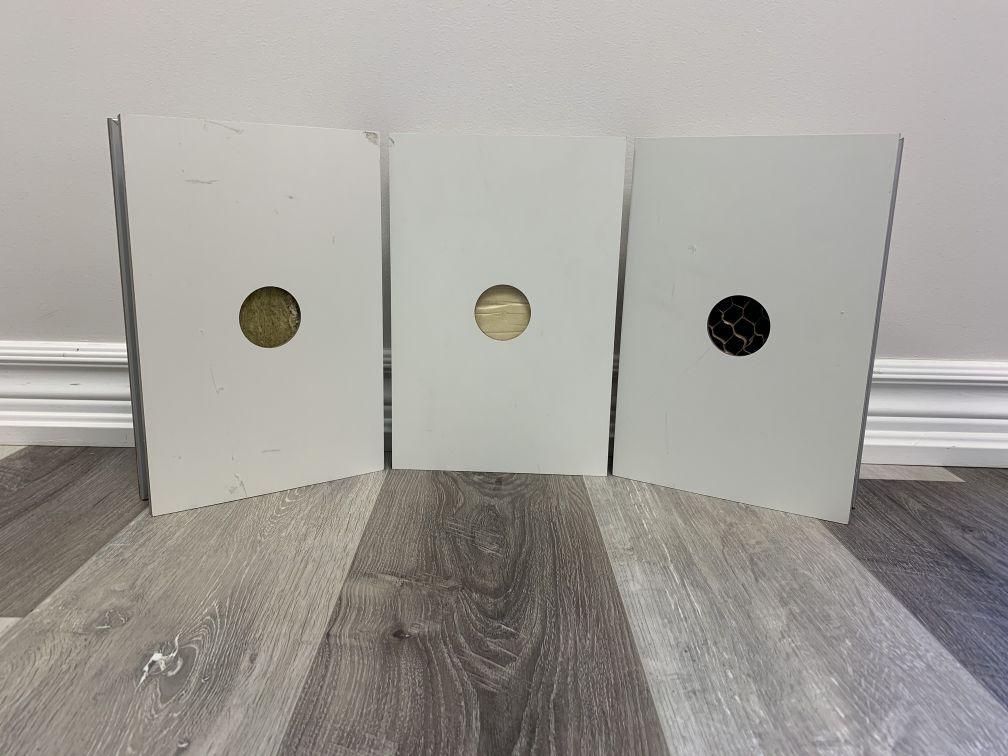

Panel Insulation

Insultation prevents the transmission of electricity, heat, moisture, shock or sound from one medium to another.

Expanded Polystyrene

Light in weight​
Resistant to compression​
Moisture resistance


Heavy in weight
Good insulation​
Sound Isolation​
Fire resistance

Aluminum Honeycomb

Light in weight
Good insulation​
Sound isolation​
Fire resistace
Environmentally friendly

Pre Cut-Outs in Wall Panels

Our Wall Panels have factory made cut-outs for:​

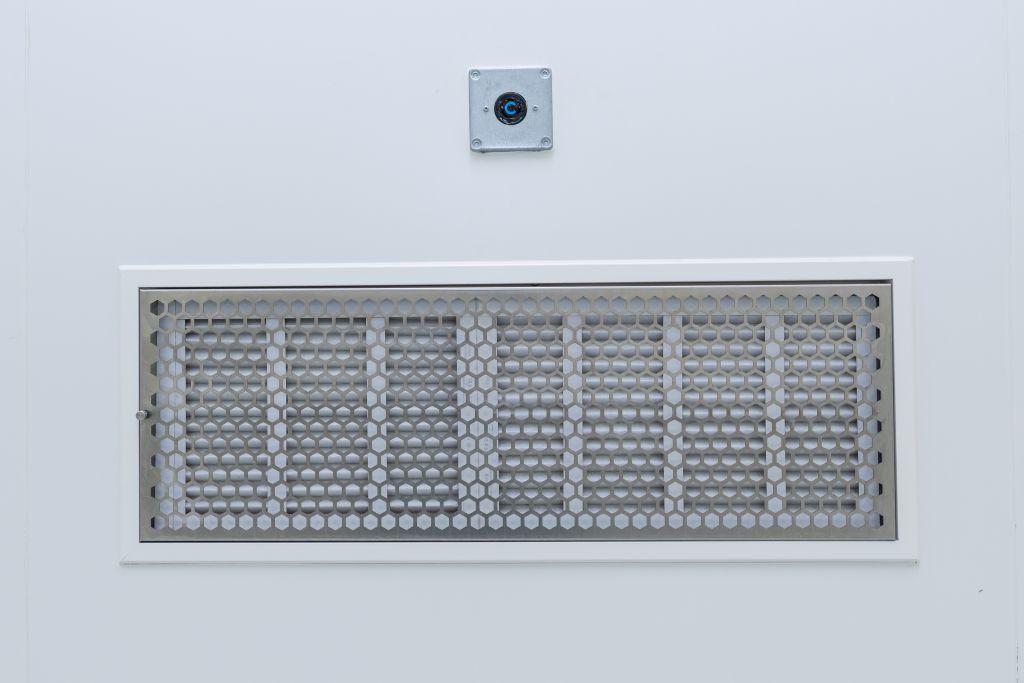

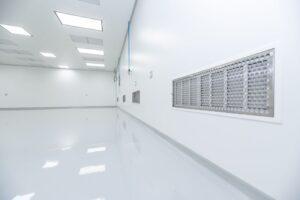

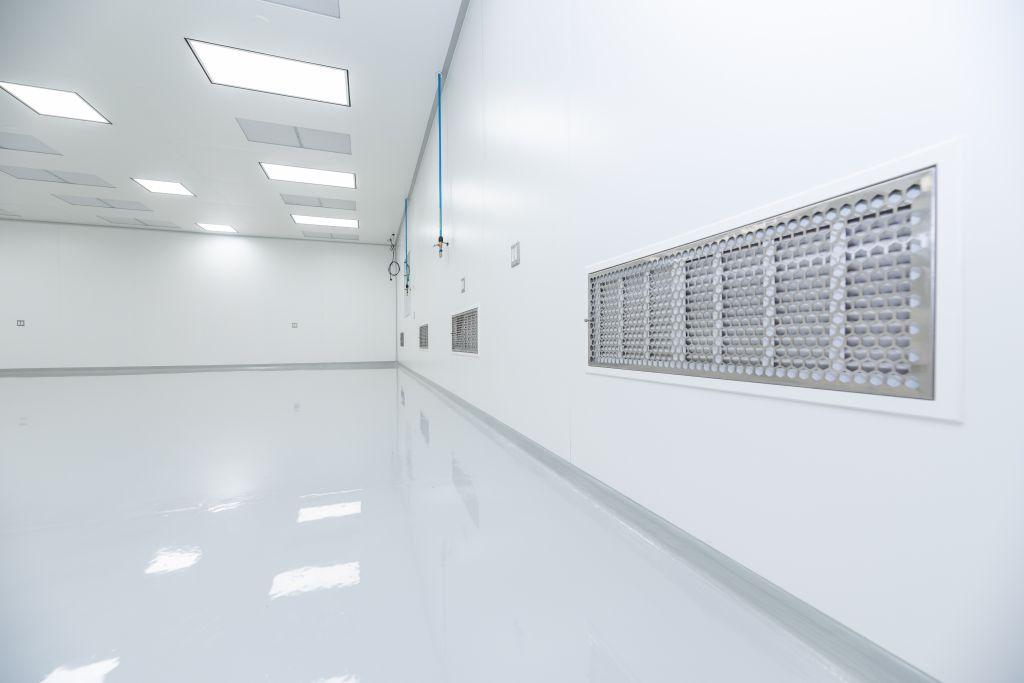

  1. Low Level Return Air​
    • We provide our own product which is manufactured and shipped along with panels, leading to cost saving.

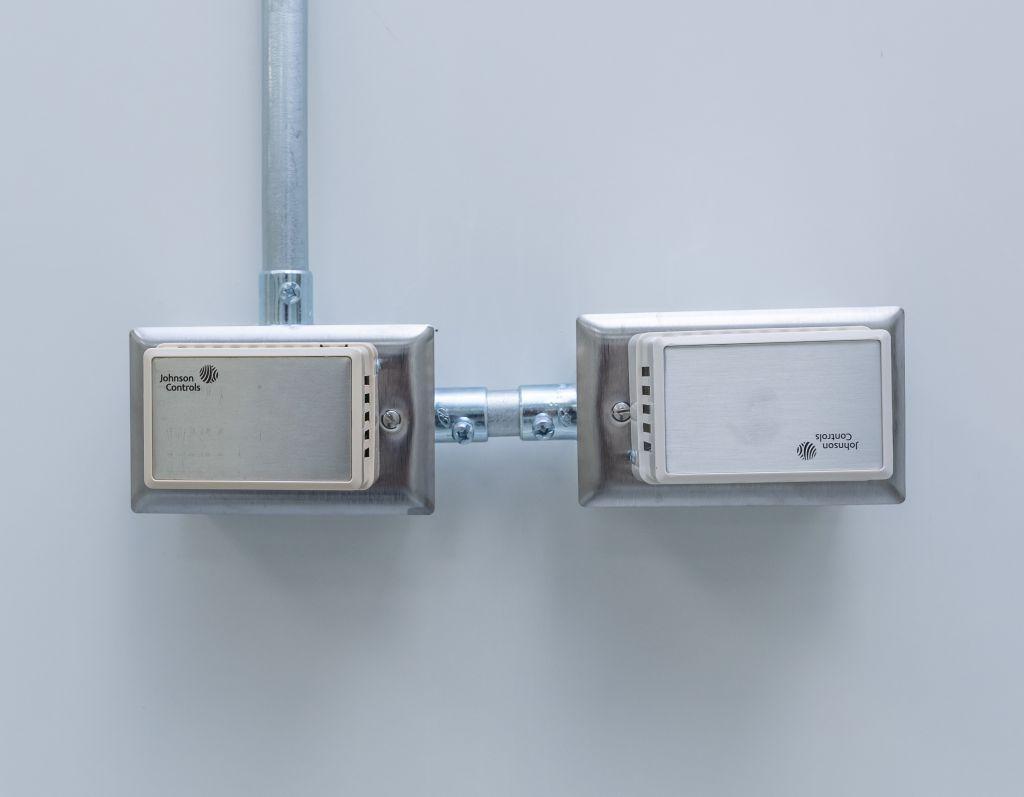

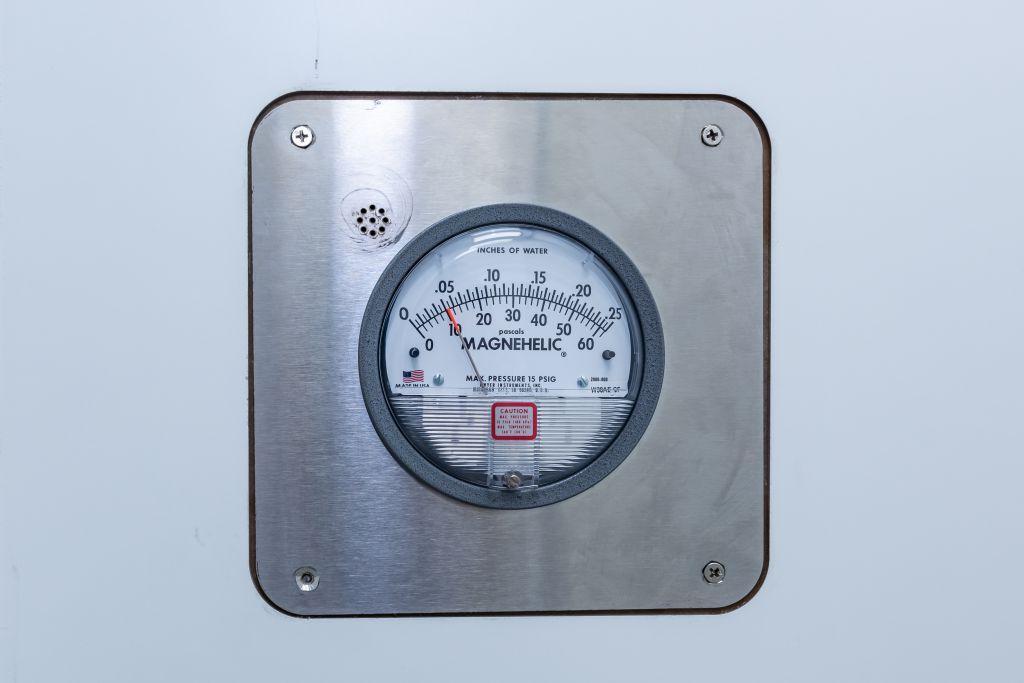

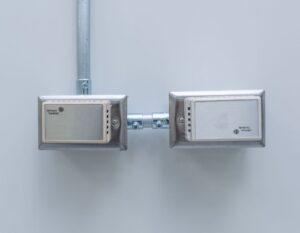

  2. Instrumentation required for monitoring room temperature & pressure​

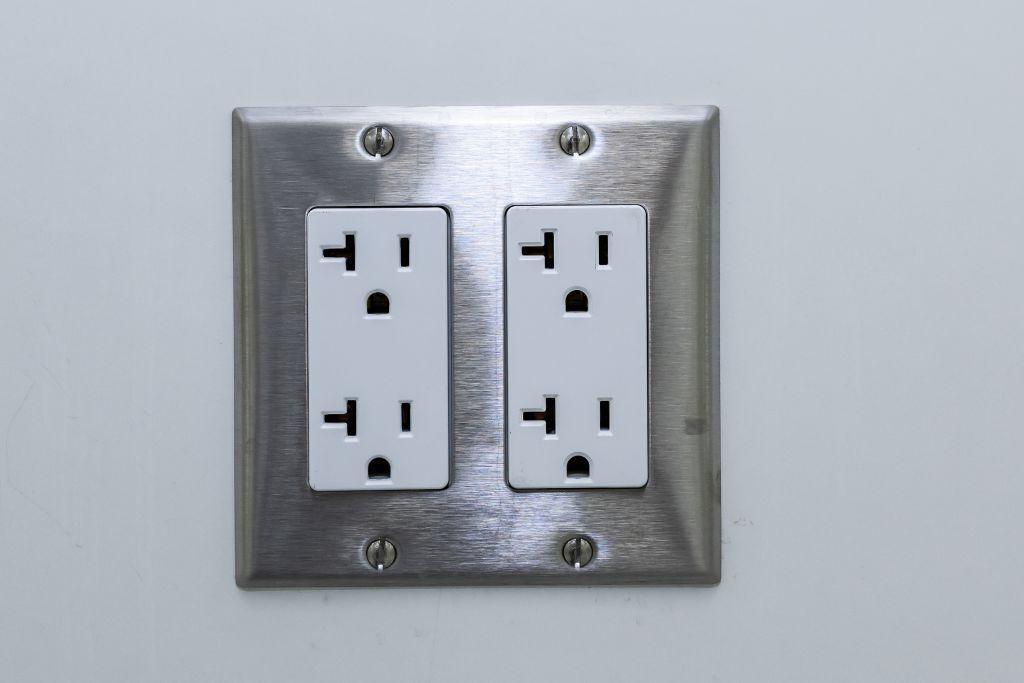

  3. Electrical Receptacles
    • Our wall panels will have factory made cut-outs of 4”x4” with a box and a conduit running down the panel. ​
    • The electrical contractor would simply need to fish BX cables through the conduit and put an electrical receptacles plate on top of the opening.​
    • Huge labor saving onsite.​
  4. Switches

Wall System Features

  • Quick, modular and lightweight installation & construction
  • Prefabricated with custom factory-made cut-out for utilities
  • Unique intermediate locking system to easily add or remove individual panels
  • Demountable & easy to re-locate the modules or components
  • cGMP certified cleanroom design compliance
  • Fully compatible with chemicals used for cleanroom cleaning and sanitizing
  • Better flexibility, durability, aesthetic and elegant appearance with the use of aluminum profile
  • ​Height of 10 ft to 30 ft (including joints)
  • 100% repairable in position
  • Integrated low-level return duct inside panel
  • 40 years and more life durability
  • Color choices available as per ACH standard shade card

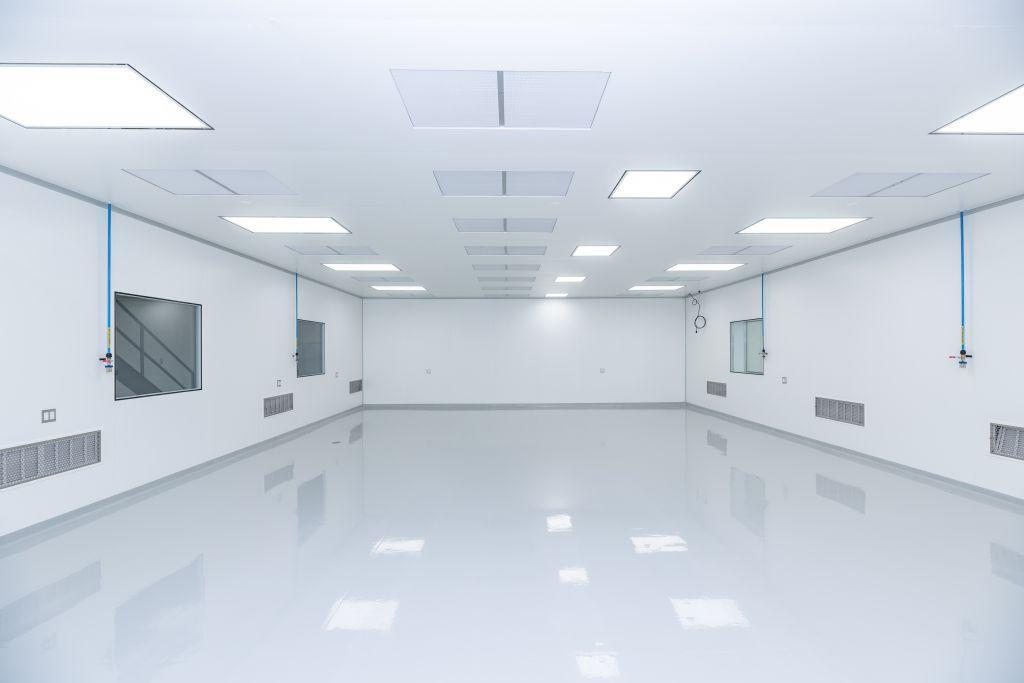

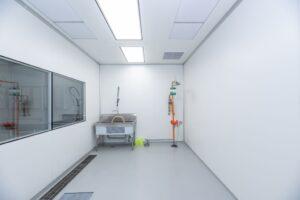

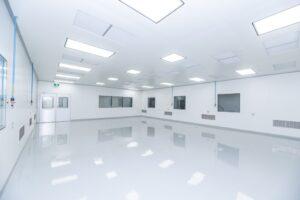

Modular Cleanroom walls from
our projects

Cleanroom Modular Walls

Diversified Offering

Our modular walls / ceilings are available in different designs and materials to suite its application and projects budgets while conforming to cGMP requirements.

True Modularity

Our modular walls / ceilings have unique intermediate locking system that makes it easy to add or remove panels, it also makes it super easy to move your structure from one place to another.

Long Lifespan

Our modular walls / ceilings have 40 years, and counting, lifespan due to its robust design and compatibility with chemicals used for cleanroom cleaning.
