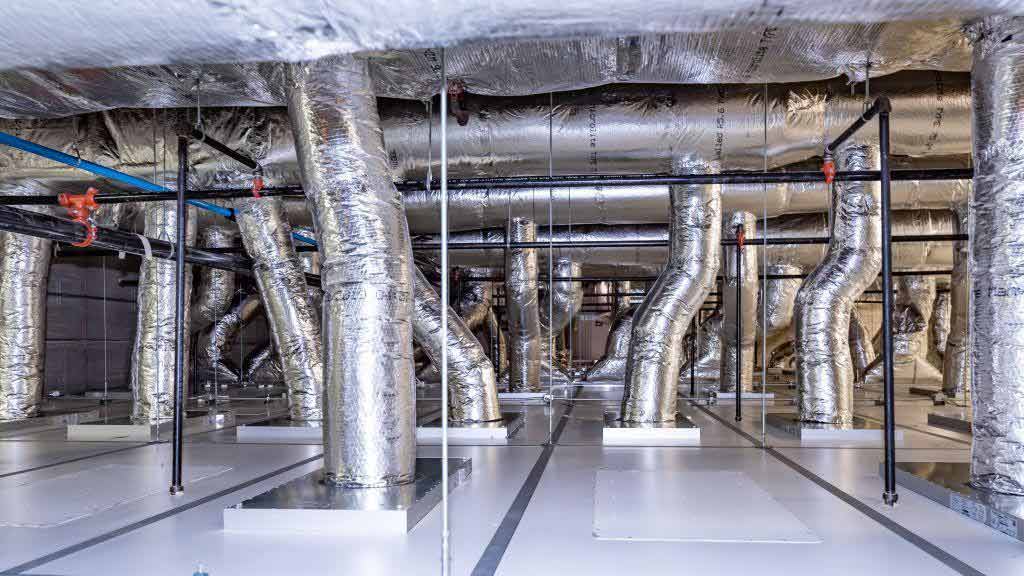

Walkable Ceilings

Cleanroom Solutions to Meet Your Requirements

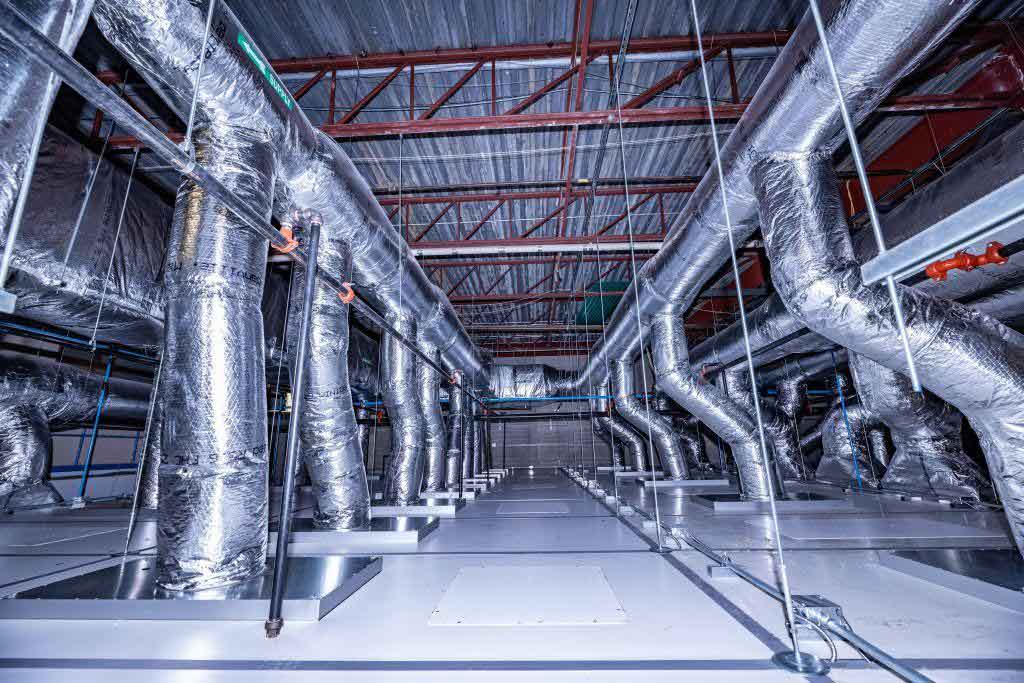

Walkable Cleanroom ceilings are needed to eliminate the risk of contaminating the cleanroom environment, HEPA / ULPA filters, sprinkler heads and lighting fixtures are completely accessible without the need to access the cleanroom internally.

Ceiling panels can be provided with factory made pre-cut outs to accommodate all Mechanical, Electrical and, Plumbing utilities, which can save time and money during the installation process.

Ceiling panels can be provided with different designs and materials, such as.

  • Galvanized Iron, Powder Coated
  • uPVC
  • High Pressure Laminated (HPL)

The ceiling panels are also insulated with Polyurethane (PUR), Polyurethane Foam (PUF), Rockwool (RW), Paper Honeycomb and Aluminum Honeycomb.

Our standard ceiling panel load bearing is 50 lb/ft² (PSF).

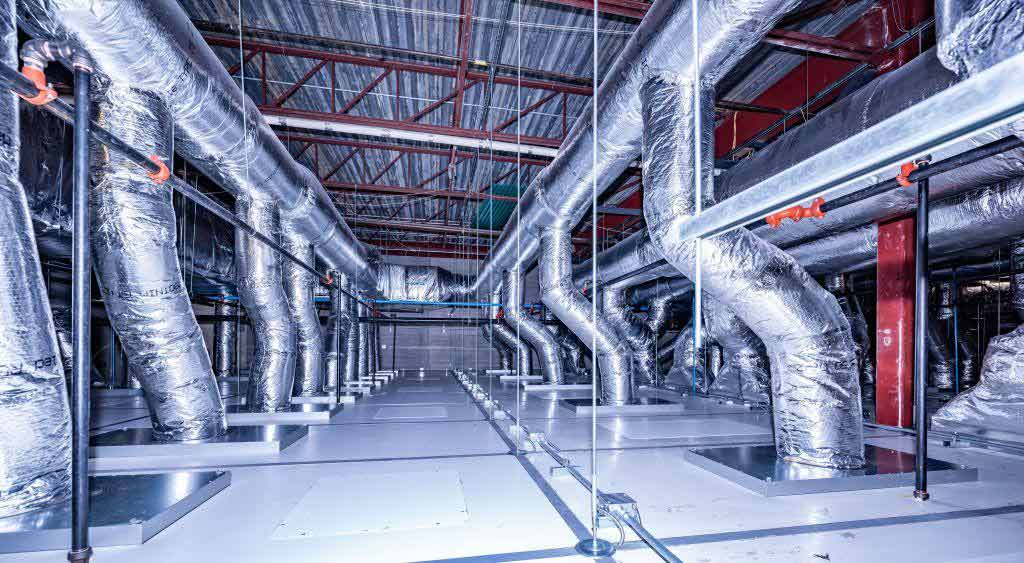

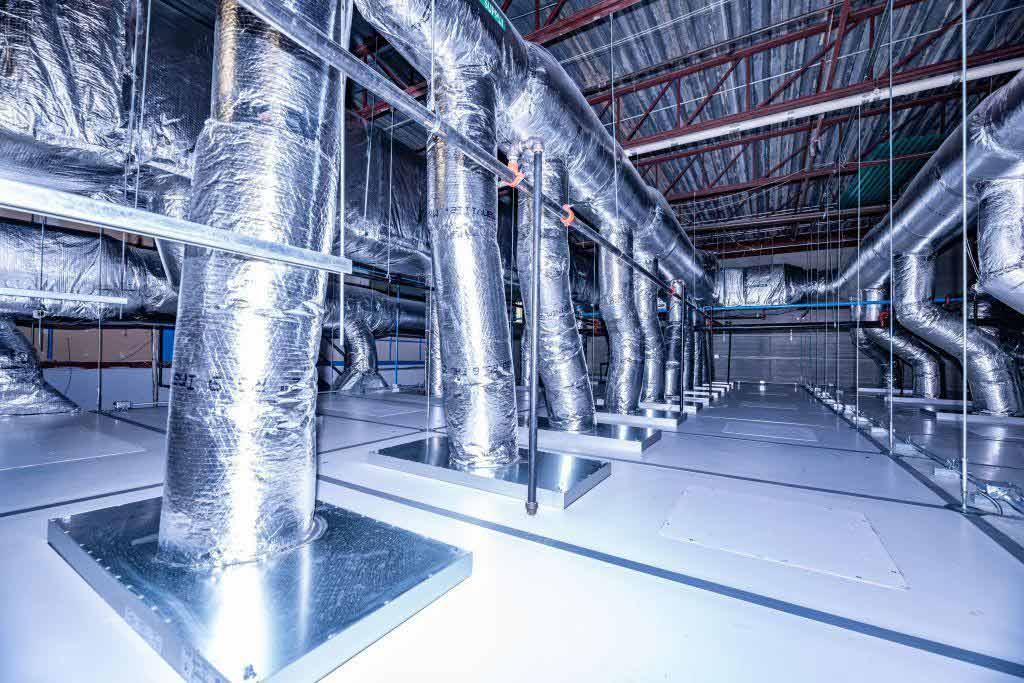

Ceiling Mounted HEPA for Cleanroom

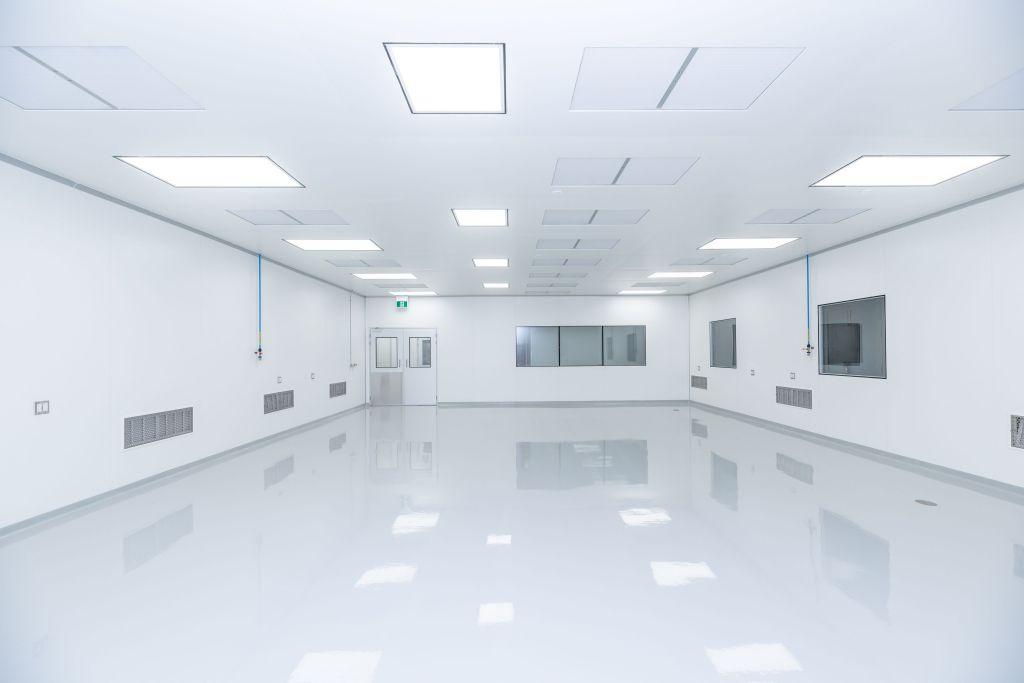

Ceiling Panel Material & Pre Cut-Outs

Our Modular Ceiling Panel systems have factory made cut-outs for:​

                        • HEPA filters​
                        • LED lights

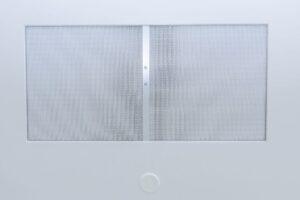

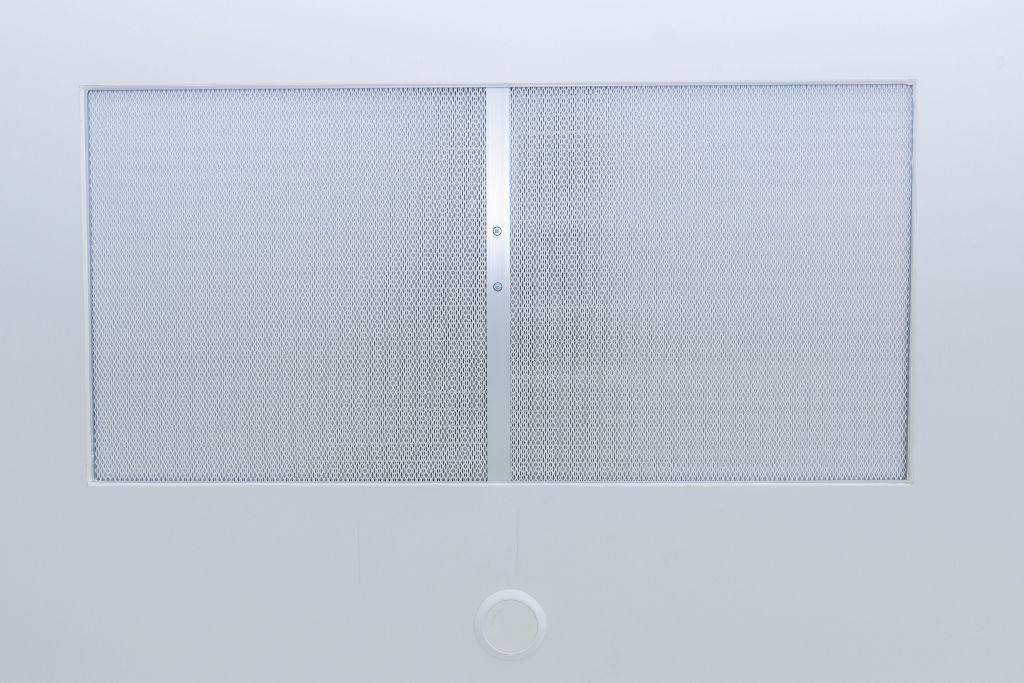

HEPA Filters

  • ACH Ceiling Panels have factory made cut-outs with a 15mm lip to house the HEPA filters, thus reducing cost and effort for providing cut-outs at site, adapters and hooks to hang the HEPA housing.​
  • Room Side Replaceable HEPA filter​
  • No onsite cutting will saving huge labor cost & saving in time

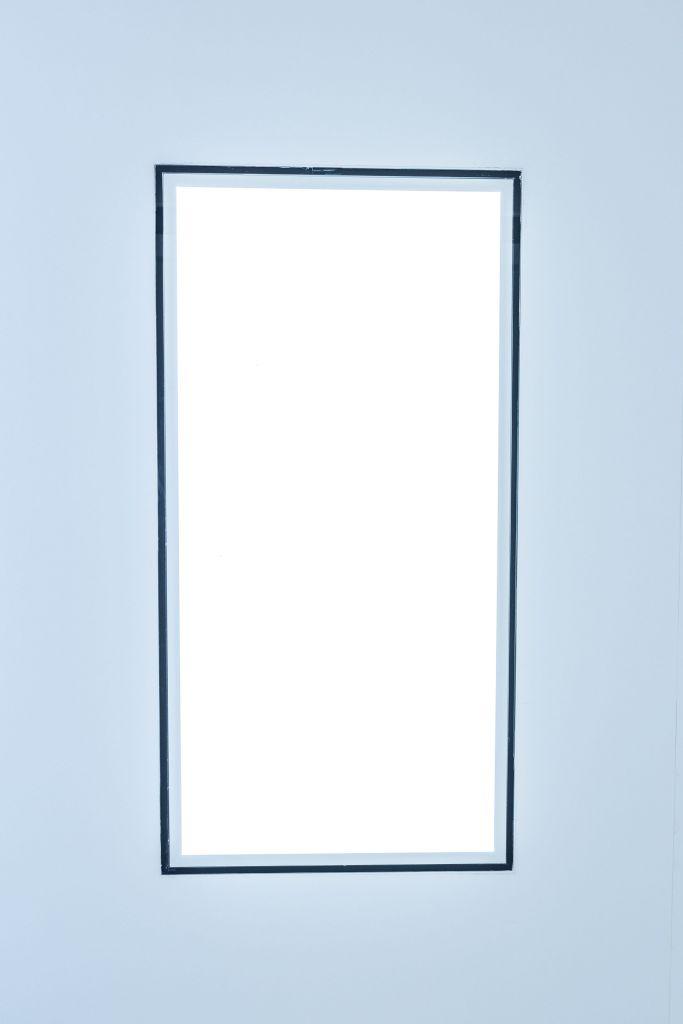

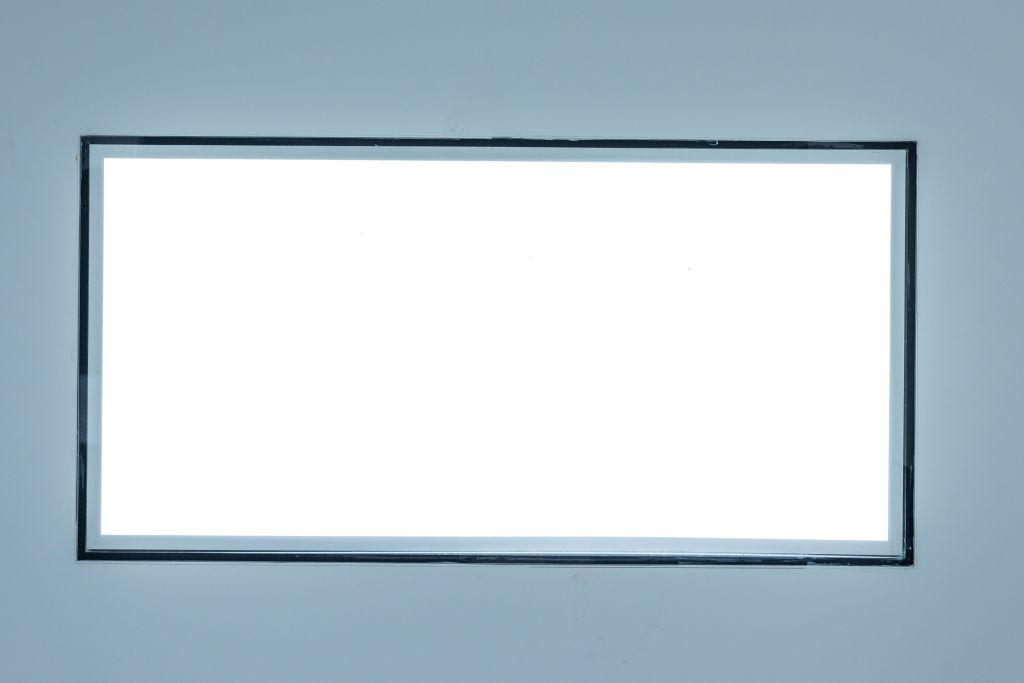

LED Lighting

  • ACH ceiling panels will have factory made cut-outs.​
  • Walk over LED lights.​
  • Recessed ceiling mount; grid or flange - 1'×4', 2'×2', 2'×4’​
  • One piece overlapping door provides air-tight integrity of luminaire​
  • High-output, high-CRI LED lamp sources for accurate color rendition and lighting performance.

Ceiling System Features

  • Pre-fab Pre cut walkable ceiling (Provision for Light, HEPA, LAF etc.)
  • Aluminum Profile peripheral ceiling panel.
  • Single 3-5 mm joint between two panel.
  • Max size (Height – 116″, Width – 44″).
  • Cable raceway on top with post caps.

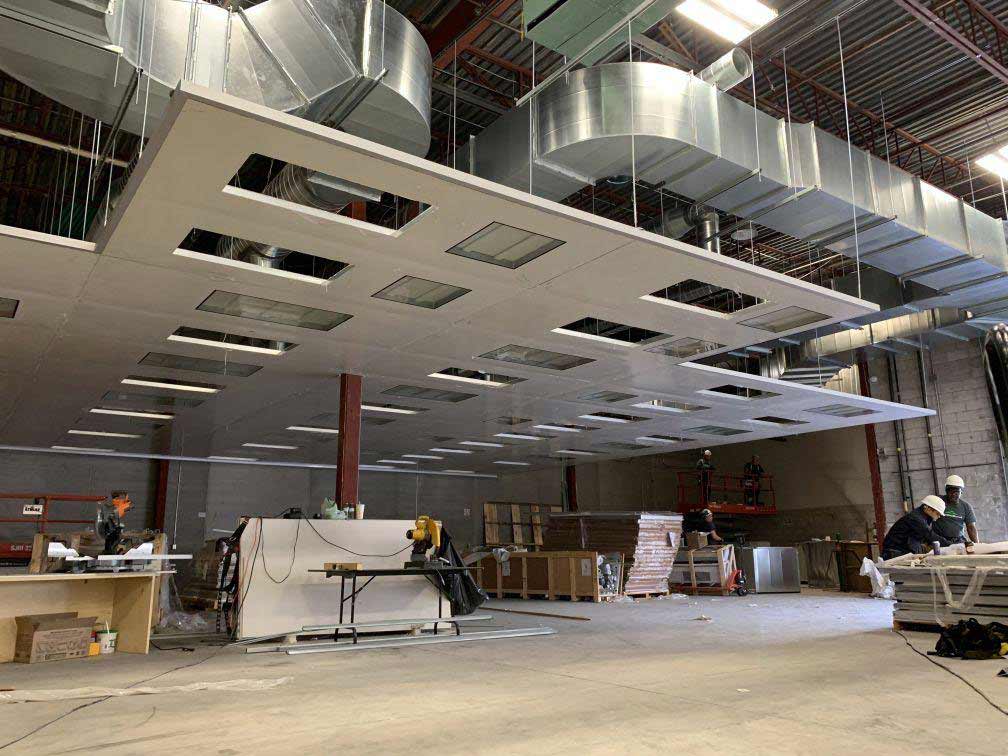

  • Roof Suspended with unique Hanging Systems with adjustable 6” LH/RH turnbuckle.
  • Walk on ceiling panels are custom built as per Customer’s Requirement for Load & Deflections.
  • Option available to design ceiling grid for better aesthetic view.
  • Standard ceiling panel load bearing is 50 lb/ft² (PSF)

Walkable Ceilings from
Our projects

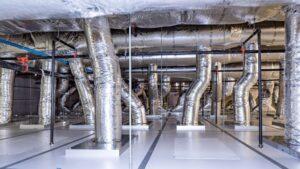

Cleanroom Walking Ceilings

Diversified Offering

Our modular walls / ceilings are available in different designs and materials to suite its application and projects budgets while conforming to cGMP requirements.

True Modularity

Our modular walls / ceilings have unique intermediate locking system that makes it easy to add or remove panels, it also makes it super easy to move your structure from one place to another.

Long Lifespan

Our modular walls / ceilings have 40 years, and counting, lifespan due to its robust design and compatibility with chemicals used for cleanroom cleaning.
